Manufacturing Capabilities

Punch Press



Punch Press capacity 30 - 270 ton. 25 spm - 150 spm ( strokes per minute ).

Sinker EDM


Sinker EDM for stamps, logos and other complex die cavities and tooling components.

Surface Grinding


Surface grinding up to 24" long, 12" wide and 8" tall.

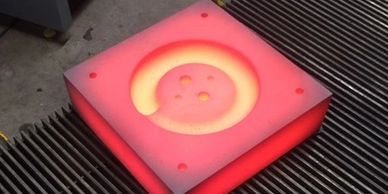

Heat Treat


All heat treat of air hardening tool steel. Max temp 2100 deg F Electric furnace 14" wide, 24" deep and 10" tall.

CNC Milling


CNC milling capabilities for machining tooling.

Wire EDM


Wire EDM Cut size capacity 18" wide, 10" deep and 10" tall. In house programing. Capable of cutting to with in .0001 of a inch tolerances.

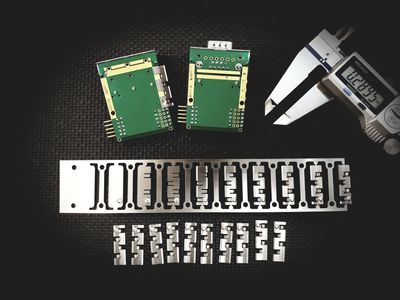

Production

Long and Short Runs


Small and Large Parts


Mass Finishing


Inspection


First Article

Our inspection criteria is determined by your needs. A first article is allways important to verify that tooling is producing your part to print, as well as verifying finish quality before a full production run starts. Our goal is to ensure we are meeting or exceeding your quality expectations.


production inspection criteria

As a minimum we always inspect first and last of every run however, operators are inspecting continuously throughout the run. We also keep a running archive of sample parts from every run to maintain consistency.

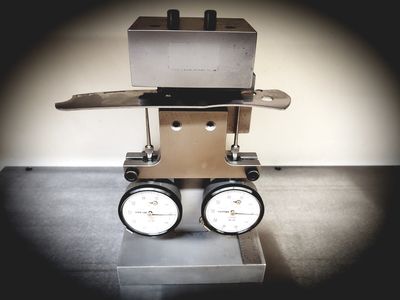

Custom Guages

We will manufacture custom inspection gauges and or tools specifically for your product. Duplicate gauges are often made and calibrated to ensure accurate measurements for both outgoing and incoming inspection.

Part Count and Packaging

Packaging

  • Part count per bag
  • Bag count per box
  • Number of boxes per pallet
  • Standard bulk Packaging offered to reduce cost

Accurate Parts Count

  • Redundant counts at the press
  • precision scale counts in shipping

Custom Packaging

  • Packaged in your custom boxes
  • Palletized to ship direct to your warehouse
  • Custom size pallets available on request
